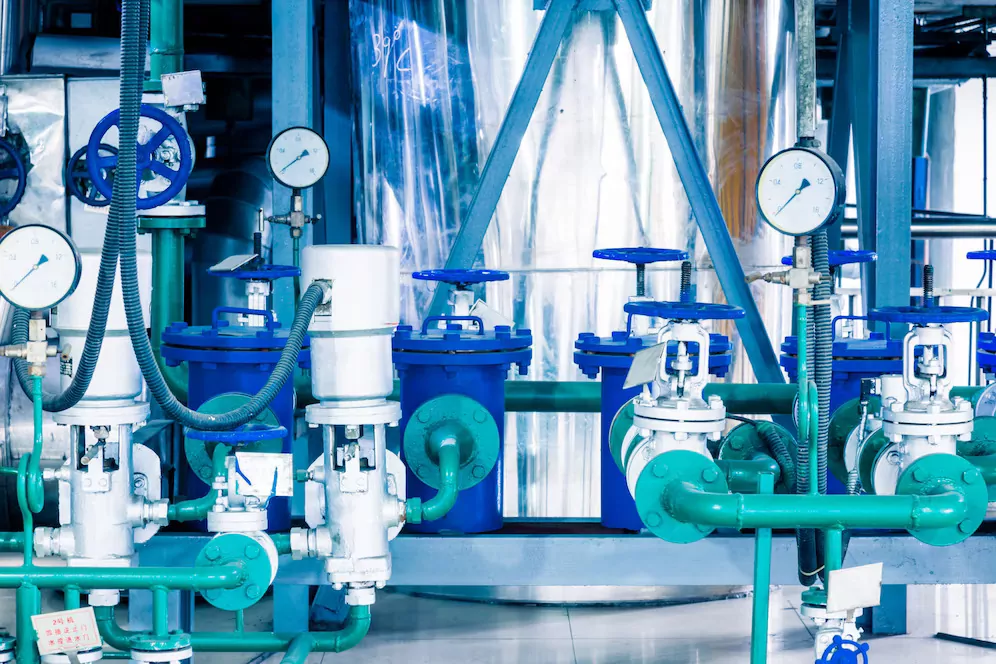

In today’s world of industrial automation, precision, reliability, and control are essential. Instrumentation and controls design provides the framework to achieve these needs — it is the nervous system of any automated or semi-automated system or process. Be it a power plant, chemical processing plant, or a manufacturing plant, instrumentation and controls systems (I&C) is a vital part to monitor, control, and optimize a process.
This article discusses the entire instrumentation and controls design process from the initial conceptual phase to full implementation. We hope to present a view that simplifies an otherwise involved subject down to manageable topics that can be accessed and understood by engineers, project managers, and others in the industry.
What is Instrumentation and Control Design?
Instrumentation and control design can be characterized as the engineering discipline concerned with creating systems that measure, monitor, and control variables such as temperature, pressure, flow, and level within a process or system. These systems need supply chains, which include a sensor, a transmitter, a controller, and a final control element, such as a valve or relay to provide safe and efficient operations.
A well-designed I&C system ensures:
- Consistent product quality
- Operational efficiency
- System reliability
- Worker safety
- Regulatory compliance
Phase 1: Conceptual Design
The journey begins with a clear understanding of the operational needs of a facility. In this phase, engineers and stakeholders define the scope, key process parameters, control objectives, and overall functionality required from the system.
Key Steps in Conceptual Design:
- Requirements Gathering: This involves close consultation with process engineers, operations teams, and safety personnel to identify measurable variables, desired control points, and performance metrics.
- Feasibility Study: Engineers perform a technical assessment to determine whether current infrastructure can support proposed control solutions, including evaluating power, communication, and space constraints.
- Preliminary System Architecture: Initial designs include block diagrams of the control hierarchy (field devices, local controllers, remote I/O, HMIs, SCADA integration) and network architecture.
- Budgeting and Scheduling: Accurate costing of hardware, software, and labor is essential. Scheduling must consider lead times for procurement, manpower availability, and integration milestones.
Phase 2: Detailed Engineering Design
Once the concept is validated, detailed engineering begins. This is the heart of the instrumentation and controls design process. It involves selecting specific components, creating detailed drawings, and developing the control logic.
Main Elements of Detailed Design:
- P&IDs (Piping and Instrumentation Diagrams): These show interconnections between mechanical systems and control systems, tagging all process sensors, actuators, and control logic references.
- Instrument Index: A comprehensive list of all instruments, including tag numbers, loop numbers, ranges, and specifications.
- Loop Diagrams: These document every signal path from the sensor or actuator to the control system and back. They include cable numbers, terminal strips, and power requirements.
- I/O List: The I/O list maps every analog, digital, and communication signal that must be processed, categorized by source and destination.
- Control Narratives: These provide a step-by-step description of process control logic, alarm handling, interlocks, and startup/shutdown procedures.
- PLC/DCS Programming: Engineers develop control algorithms using ladder logic, function block diagrams, or structured text, depending on the controller type. Code is version-controlled and modular for easier troubleshooting.
Detailed engineering is collaborative. Electrical, mechanical, and process engineers must work closely to ensure that instrumentation and controls align with all other aspects of the facility.
Phase 3: Component Selection and Procurement
Component selection is critical to system performance and longevity. The instruments and control hardware must be accurate, durable, and compatible with the process environment (e.g., high temperature, corrosive substances).
Factors Influencing Selection:
- Measurement range and resolution
- Material compatibility with process media
- Intrinsic safety and explosion-proof certification
- Communication capabilities (HART, FOUNDATION Fieldbus, Modbus RTU/TCP, EtherNet/IP)
- Functional safety ratings (SIL 1/2/3 compliance)
- MTBF (Mean Time Between Failure) and maintenance requirements
Vendor datasheets are analyzed alongside simulation and test results. MECS Engineering uses vendor qualification procedures and long-term performance data to ensure component suitability.
Phase 4: Installation and Integration
This phase involves the physical installation of instruments, control panels, cabling, and communication systems. Precision is key, as improper installation can compromise system functionality and safety.
Key Activities:
- Instrument Mounting: Engineers ensure process connections are correct (e.g., flange vs threaded) and that mounting orientations match manufacturer specifications to avoid zero shift or signal drift.
- Cable Routing and Termination: Signal, power, and network cables are segregated to avoid electromagnetic interference (EMI). Grounding and shielding practices follow IEEE/IEC guidelines.
- Control Panel Assembly: Includes installation of relays, terminal blocks, surge protectors, and power supplies. Panels are labeled per IEC 81346 or ANSI/NEMA standards.
- Integration with PLC/DCS: Communication between smart instruments and controllers is tested using vendor-specific tools. Engineers validate tag mapping and scaling across the system.
Documentation is maintained in real-time using engineering data management software to ensure traceability.
Phase 5: Testing and Commissioning
Before the system goes live, rigorous testing is performed to ensure everything functions as intended.
Types of Testing:
- Factory Acceptance Testing (FAT): Performed in a controlled environment to verify hardware setup, controller logic, HMI screens, and simulated I/O responses.
- Site Acceptance Testing (SAT): Conducted on-site to verify integration with actual process equipment. Includes live signal tests, failover testing, and sequence validation.
- Loop Checks: Technicians use handheld communicators and test equipment to verify that each instrument is connected properly and reads accurately across its entire range.
- Functionality Testing: Simulates process conditions to ensure that control logic, alarms, and interlocks respond appropriately.
Phase 6: Operation and Maintenance
Even the best-designed systems require regular maintenance and occasional upgrades. A good I&C design includes features that make maintenance easier, such as diagnostic tools and modular components.
Maintenance Best Practices:
- Scheduled Calibration: Ensures measurement accuracy over time using portable calibrators or in-line calibration systems.
- Firmware Updates and Patch Management: Keeps controllers and smart devices secure and compatible with evolving software tools.
- Redundancy Checks: Verifies hot-standby systems and backup power remain functional.
- Alarm Management: Periodic review of alarm logs ensures nuisance alarms are minimized and critical alarms remain effective.
Operational data collected by the I&C system can also support predictive maintenance strategies, reducing downtime and increasing asset lifespan.
Common Challenges in I&C Design Projects
Instrumentation and controls design is complex and often faces challenges like:
- Miscommunication between disciplines due to unclear specifications
- Late-stage design changes impacting panel space and I/O capacity
- Integration with legacy systems lacking modern communication protocols
- Time and budget constraints impacting quality and validation rigor
Experienced firms like MECS Engineering have robust project management, design validation, and documentation processes to navigate these hurdles effectively.
Future Trends in Instrumentation and Controls
As technology evolves, so does the world of I&C. Here are a few trends shaping the future:
- IIoT (Industrial Internet of Things): Deploying edge devices and cloud platforms for real-time monitoring and advanced analytics.
- Cybersecurity: Using ISA/IEC 62443 frameworks to secure network architecture, endpoint protection, and access control.
- Wireless Instrumentation: Incorporating WirelessHART and ISA100 for scalable monitoring where wired options are impractical.
- AI and Machine Learning: Embedded into advanced control systems for adaptive control and early anomaly detection.
- Digital Twin Technology: Creating dynamic simulations for training, optimization, and troubleshooting without physical intervention.
Firms like MECS Engineering are already incorporating many of these technologies into their projects to deliver smarter, safer, and more efficient solutions.
Conclusion
Instrumentation and controls design is a foundational element of modern industrial operations. From conceptual planning to full-scale implementation, every step in the I&C design process is crucial to system success. A well-executed I&C system not only boosts efficiency and productivity but also ensures safety, compliance, and long-term sustainability.
